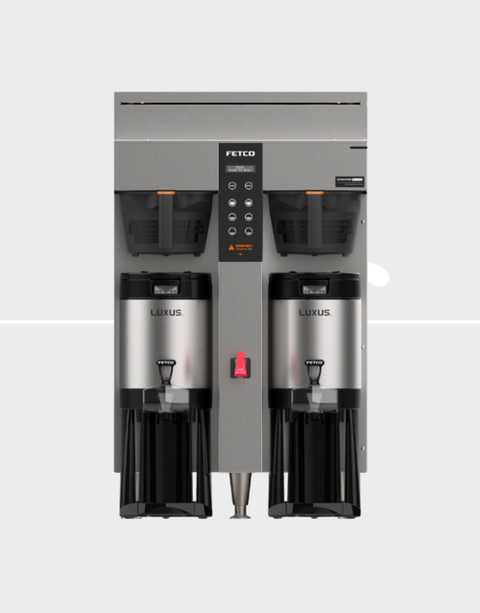

Fetco CBS-1252 Plus Series Twin Station Coffee Brewer – 1.5G Metal Brew Basket (Dual Phase)

The Fetco CBS-1252 Plus Series (E1252US-UB230-MM110) is a high-volume, twin station coffee brewer engineered for demanding environments such as banquet halls, cafeterias, and restaurants. With two independent brewing stations and robust metal brew baskets (16" x 6"), it enables simultaneous brewing of two 1.5-gallon (5.7L) batches, making it ideal for continuous, large-batch service.

Key Features

• Twin station design for simultaneous, high-volume brewing
• Metal brew baskets (16" x 6") for durability and optimal heat retention
• Push button interface with programmable batch sizes on each side
• Brew basket sensors and locks for safety
• Manual hot water faucet
• Bypass valve for recipe flexibility
• ECO mode for energy efficiency
• USB port for recipe management and software updates
• Laser-welded tank for long-lasting durability
• Removable electrical lattice and front panel access for easy maintenance

Technical Specifications

• Model: E1252US-UB230-MM110 (CBS-1252 Plus Series)
• Brew Capacity: Up to 481 (8 oz) cups/hour (1.5 gallons/5.7L per batch, per side)
• Tank Capacity: 10.48 gallons (39.67 liters)
• Dimensions (W x D x H): 21.88" x 22.5" x 36.88"
• Shipping Weight: 77 lbs (35 kg)
• Voltage: 208-240V, 2 x 3.0 kW (single phase) or 3 x 3.0 kW (three phase)
• Phase: 1 or 3, 2+G or 3+G wiring
• Max Amp Draw: 25.5 (single phase), 22.2 (three phase)
• Connection: Terminal block (no cord included, hardwired installation required)
• Water Connection: 3/8" male flare, automatic fill
• Water Pressure Requirement: 20-75 psig
• Minimum Flow Rate: 1.5 gpm
• Filter Size: 16" x 6"
• Certifications: NSF, UL

What’s Included

• Fetco CBS-1252 Plus Series Twin Station Coffee Brewer
• Two metal brew baskets
• Brewer legs
• 3/8" male flare fitting adapter

Warranty

Circuit Boards: 3 years parts, 1 year labor
Electromechanical Parts: 2 years parts, 1 year labor
All Other Parts: 1 year parts and labor
Accessories and Dispensers: 1 year parts only
Support: Contact Fetco for warranty claims and service.

This brewer delivers dependable, high-volume coffee service and consistent quality for the most demanding commercial environments.
