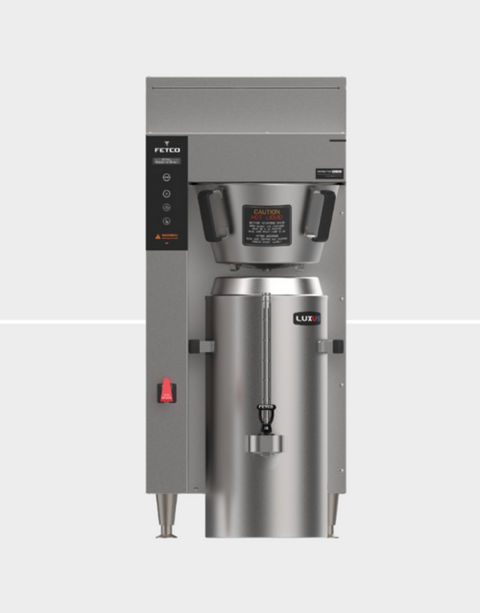

Fetco CBS-1261 Plus Series Single Station Coffee Brewer – 3.0G Metal Brew Basket (Dual Phase)

The Fetco CBS-1261 Plus Series (E1261US-UB230-MM110) is a high-capacity, single station coffee brewer engineered for large venues such as banquet halls, cafeterias, and restaurants. Designed for continuous, high-volume batch brewing, this model features a robust metal brew basket (21" x 7") and delivers reliable performance for demanding commercial environments.

Key Features

• Single station design for large batch brewing (3.0 gallons per cycle)
• Metal brew basket (21" x 7") for optimal heat retention and durability
• Push button interface for simple operation
• Brew basket sensor and locks for safety
• Manual hot water faucet
• Bypass valve for recipe flexibility
• ECO mode for energy efficiency
• USB plug-in for recipe management and software updates
• Laser-welded tank for long-lasting durability
• Removable electrical lattice and front panel access for easy maintenance
• Cascading Spray Dome® for even water distribution and optimal extraction

Technical Specifications

• Model: E1261US-UB230-MM110 (CBS-1261 Plus Series)
• Brew Capacity: Up to 15.9 gallons/hour (single phase), up to 23.9 gallons/hour (three phase)
• Tank Capacity: 8.63 gallons (32.67 liters)
• Dimensions (W x D x H): 17.88" x 27.5" x 41.38"
• Shipping Weight: 88–97 lbs (40–44 kg)
• Voltage: 208-240V, 2 x 3.0 kW (single phase, 2+G) or 3 x 3.0 kW (three phase, 3+G)
• Max Amp Draw: 25.5 (single phase), 22.2 (three phase)
• Connection: Terminal block (no cord included, hardwired installation required)
• Water Connection: 3/8" male flare, automatic fill
• Water Pressure Requirement: 20-75 psig
• Minimum Flow Rate: 1.5 gpm
• Filter Size: 20" x 8"
• Certifications: NSF, UL, cULus

What’s Included

• Fetco CBS-1261 Plus Series Single Station Coffee Brewer
• Metal brew basket
• Brewer legs
• 3/8" male flare fitting adapter

Warranty

Circuit Boards: 3 years parts, 1 year labor
Electromechanical Parts: 2 years parts, 1 year labor
All Other Parts: 1 year parts and labor
Accessories and Dispensers: 1 year parts only
Support: Contact Fetco for warranty claims and service.

This brewer delivers maximum throughput, flexible installation, and consistent quality for the most demanding high-volume commercial coffee service.
